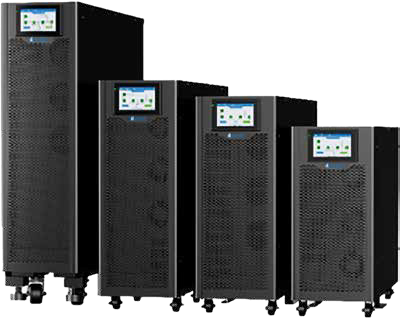

The Dotvolt Volt TR Series is a high-performance, three-phase input/three-phase output (3/3) Online UPS designed to provide reliable, continuous power protection for critical equipment. Featuring true double-conversion technology, high efficiency, and advanced battery management, it delivers clean, stable power for industrial and IT applications.
Description
Basic Features
– Power Ratings: 10, 15, 20, and 30 kVA/kW.
– True Double Conversion: Continuous, reliable power protection.
– High Efficiency: Up to 95% in online mode.
– High Output Power Factor: PF 1.0.
– Input Power Factor: 0.99.
– Wide Input Voltage Range: 304–478 VAC at 100% load.
– Pure Sine Wave Output: Stable, clean power for sensitive equipment.
– DSP Technology: Advanced digital control for high reliability.
– Cold Start & Auto Start: Battery startup and automatic restart after power restoration.
– Smart Battery Management: Automatic charging and advanced battery care.
– ECO Mode: Energy-saving operation.
– Adjustable Output Voltage: Selectable through the LCD display.
– Comprehensive Protection: Short circuit, overload, high/low voltage, high temperature, low battery, and fan failure.
– Generator Compatibility: Supports generator-powered operation.
– Communication: Standard RS232, RS485, USB, and battery cold-start support.
– Parallel Operation: Optional N+X parallel configuration.
– Emergency Power Off (EPO): Available as an optional feature.
Applications: Industrial facilities, data centers, servers, networking equipment, and other critical systems requiring uninterrupted power.
