Triple IR Flame Detector for Energy Transition

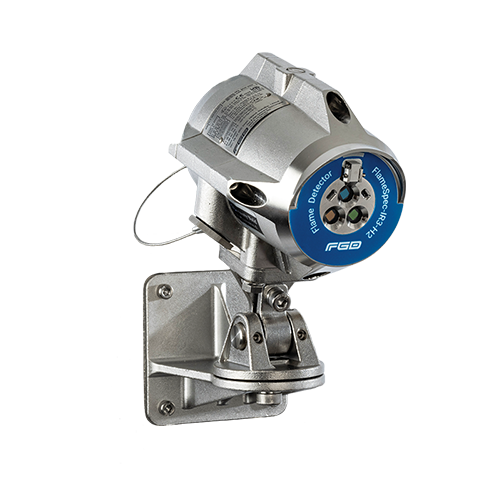

The FlameSpec™ StretcH2 flame detector provides unrivaled response, high performance, and reliable detection for a number of fires found in energy transition applications, such as hydrogen and hydrocarbon fires.
The detector addresses slow-growing fires as well as fast eruptions of fire using improved IR3 technology. The detector operates in all weather and light conditions.
These features, along with the built-in event logger, provide additional means to study the cause and development of fire events.
Description
Key Benefits
- High immunity to false alarms, including arc welding.
- Detects hydrogen flames and hydrocarbon fires using three infrared wavelengths with clear separation.
- Each sensor has the same field of view to further improve false alarm immunity.
- Ultra-fast detection mode detection within 40 milliseconds for fireballs or explosions.
- Five selectable sensitivity levels.
- Universal outputs, 3- and 4- wire, 4—20 mA sink/source, Fire, Auxiliary and Fault relays. RS485 port using Modbus RTU.
- Event logger: Alarms and faults are logged to non-volatile memory.
- Built-In-Test (BIT) – Automatic and manual self-test of window cleanliness and overall detector operation.
- Additional dirty optics warning for preventive maintenance needs.
- HART® 7 for configuration and maintenance.
- Heated window to avoid condensation and icing.
- Stainless steel tilt mount with horizontal and vertical adjustment.
- Functional safety – SIL 2 capable.
